Introduction

What is Botanic Gardens AR?

Botanic Gardens AR is an mobile AR game based on Botanic Gardens Singapore. We aimed to bring an educational and unique approach to teaching users about the nature, and history of the Gardens. This uses multiple interactions, which unlocks a secret area when completed. The interactions start from the virtual 3D map, tapping on small plants to see clues, playing through hedge mazes and learning how to recycle.

Background

Botanic Gardens AR is an mobile AR game based on Botanic Gardens Singapore, exclusive to Andrioid. We aim to bring an educational and unique approach to educating users about the flora and fauna, and history of the Gardens. This uses multiple interactions, which unlocks a secret area when completed. The interactions start from the virtual 3D map, tapping on small plants to see clues, playing through hedge mazes and learning how to keep the environment clean and safe for all.

This app is made for Android mobile phones, using android version 10.0 ( API level 29 ). If you would like to download the app, click the buttons on the left, or click here

If you would like to see the full documentation and proposal done by me, click the buttons on the left, or click here, as I will show a summarised version of my documentation/proposal.

Core Objectives

• To teach players more about the history of botanic garden and nature through a fun experience
• To teach players more about nature
• To motivate players to visit botanic gardens in Singapore
• Modeling and some VFX for the glasshouse and learning forest
• Group Leader

Target Audience

• Nature lovers
• Tourists who want to learn more about the gardens in Singapore
• Users that wish to try a unique and educational AR experience
• Teenagers and young adults
• The Disabled who are unable to visit the park due to inconveniences

Database/Firebase

For our app, players can create accounts, sign in, submit scores and submit images through firebase. On our main website, players can log in, view their position on the leaderboard, vote for their favourite mini games, talk to other plays on the message board, contact us and join our news letter.

Compeitive anaylysis

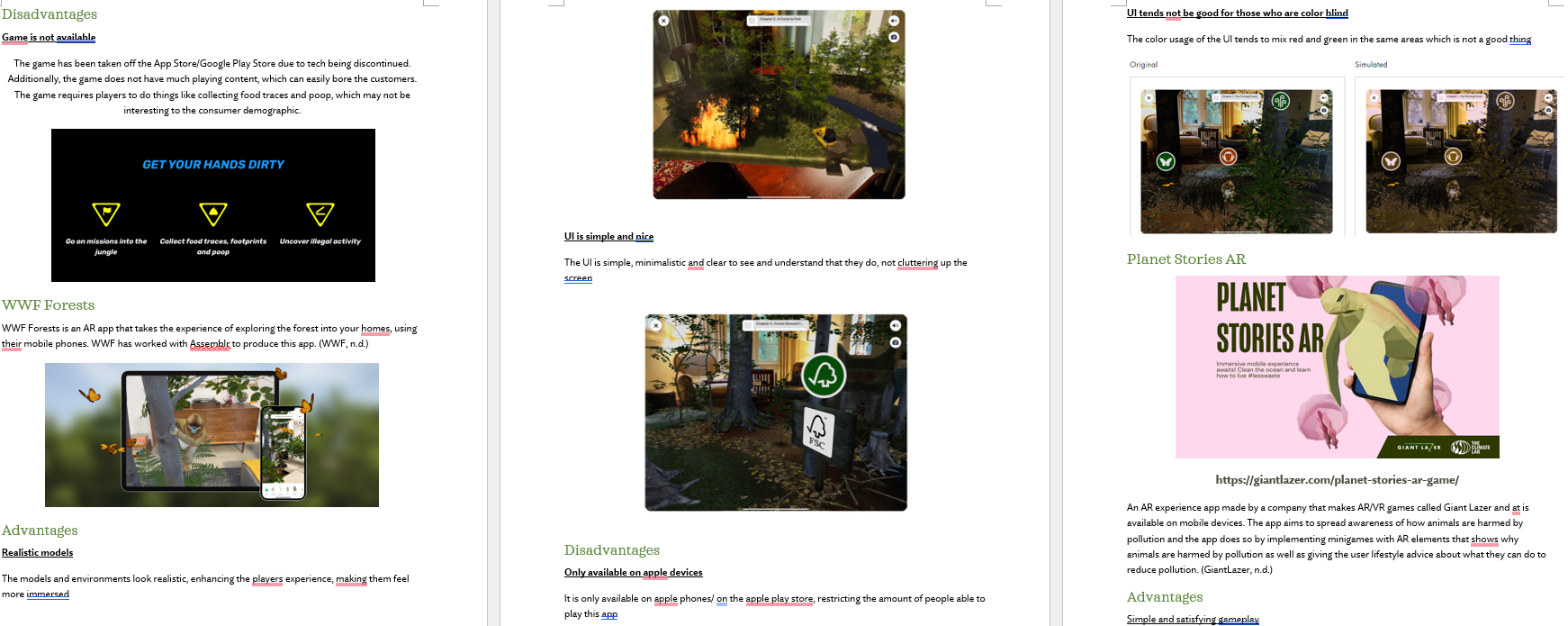

We performed a competitive analysis of games similar to what we had in mind, we did a competitive analysis of Magical Forest, Wildeverse, WWF forest and Planet Stories AR, which can all be seen in detail in the full proposal

Table of Summary of our findings( the full table can be seen in the proposal )

Persona

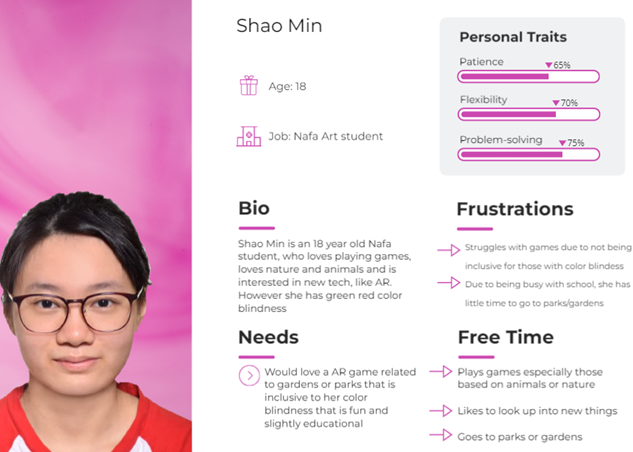

Shao Min, who is an 18-year-old NAFA student, is my persona and usability tester. She's enjoys games who also loves nature and animals, and she's interested in new technology like AR. However, being red-green color blind, she faces challenges with certain games that aren't inclusive of her disability, makes it more difficult to play certain games. Shao Min's interests align with our target audience, thus, her feedback will be valuable.

Empathy Map

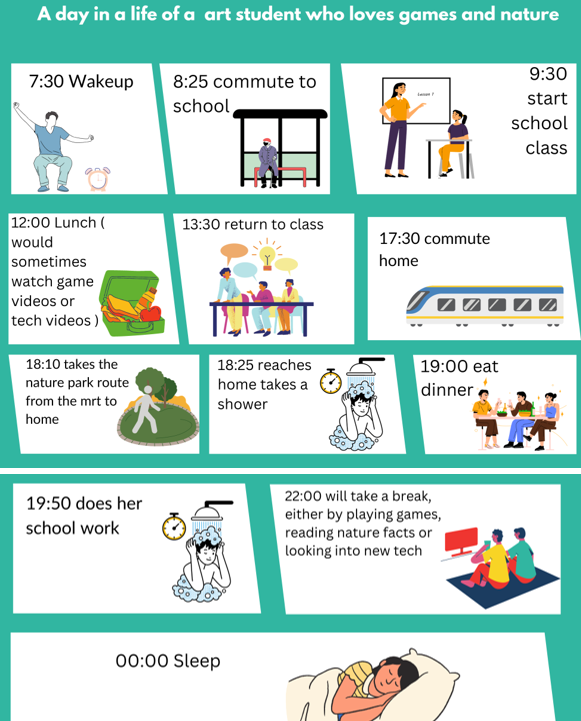

Day in a life

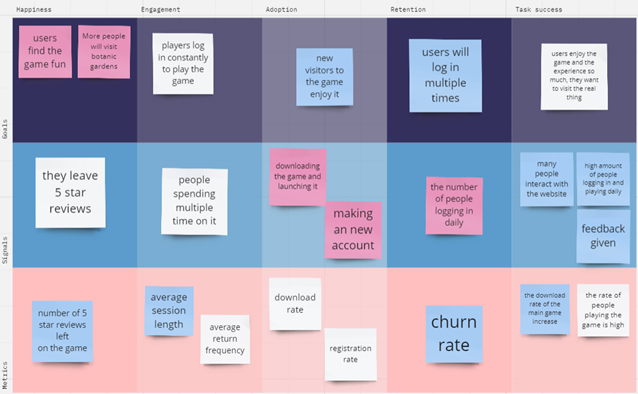

HEART Map

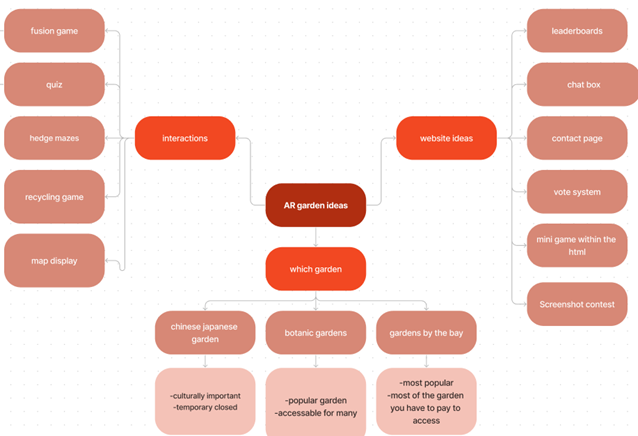

Mind Map

Game Design Segment (full Game Design Segment in Proposal)

Game Overview

Players first register and or log in, and they will be sent into the main menu scene, where they can either start playing the game, adjust audio, take a picture competition, check our website, and can log out.

When starting the game, the player will be introduced to Botanic Gardens and how the game will work and the different image targets, and that they can unlock the greenhouse when finishing all 4 areas.

They can scan through each of the images to play interactions for each area, such as the fusion area, the recycling area, maze and the quiz.

Once playing through all of them, they will be notified that they can scan and play the greenhouse area. Once done visiting the area they van go back to the main menu and log out

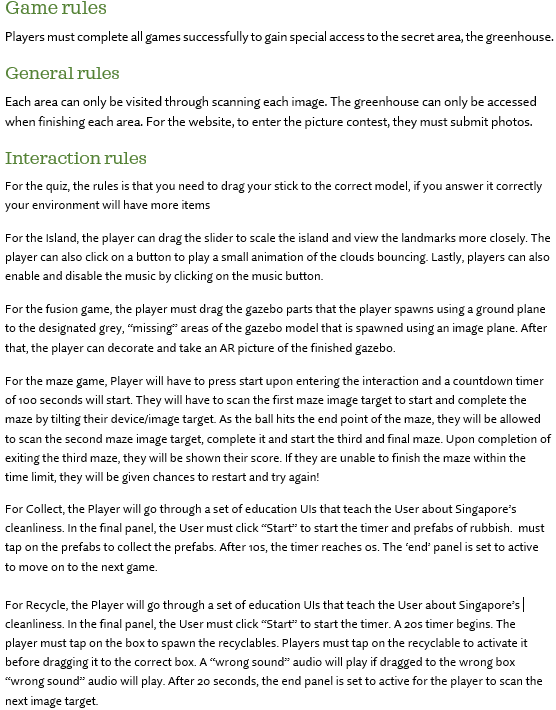

Here are the rules of the game

Here is the game structure

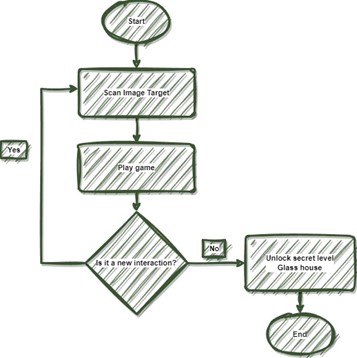

Core Gameplay Loop

MVP (Minimum Viable Product

• Player log in and sign up
• Toggle on and off button UI button
• A "?" button
• A mix of ground plane high ground
• Making sure all our base interactions can work, no hidden secrets to tap on
• Making sure the data of the maze score can be sent into our database
• Making sure that when all base interactions work, they can unlock the greenhouse
• Using a camera animation to give a tour on the greenhouse

WishList

This is what I wished to have in our project if we had more time

• Player log in and sign up
• Toggle on and off button UI button
• A "?" button
• A mix of ground plane high ground
• Making sure all our base interactions can work, no hidden secrets to tap on
• Making sure the data of the maze score can be sent into our database
• Making sure that when all base interactions work, they can unlock the greenhouse
• Using a camera animation to give a tour on the greenhouse
• The player can turn the camera in any direction during the greenhouse scene
• The player can tour the greenhouse through AR
• An option for a voice to play, which narrates the text shown on the screen
• Being able to animate all the UI panels shown on the screen for consistency
• Photo taking for the Gazebo decorating minigame

Things to note before designing for mobile apps

I did research on designing for mobile apps before figuring out the layout of the UI or anything else, so I can optimize it best for players.

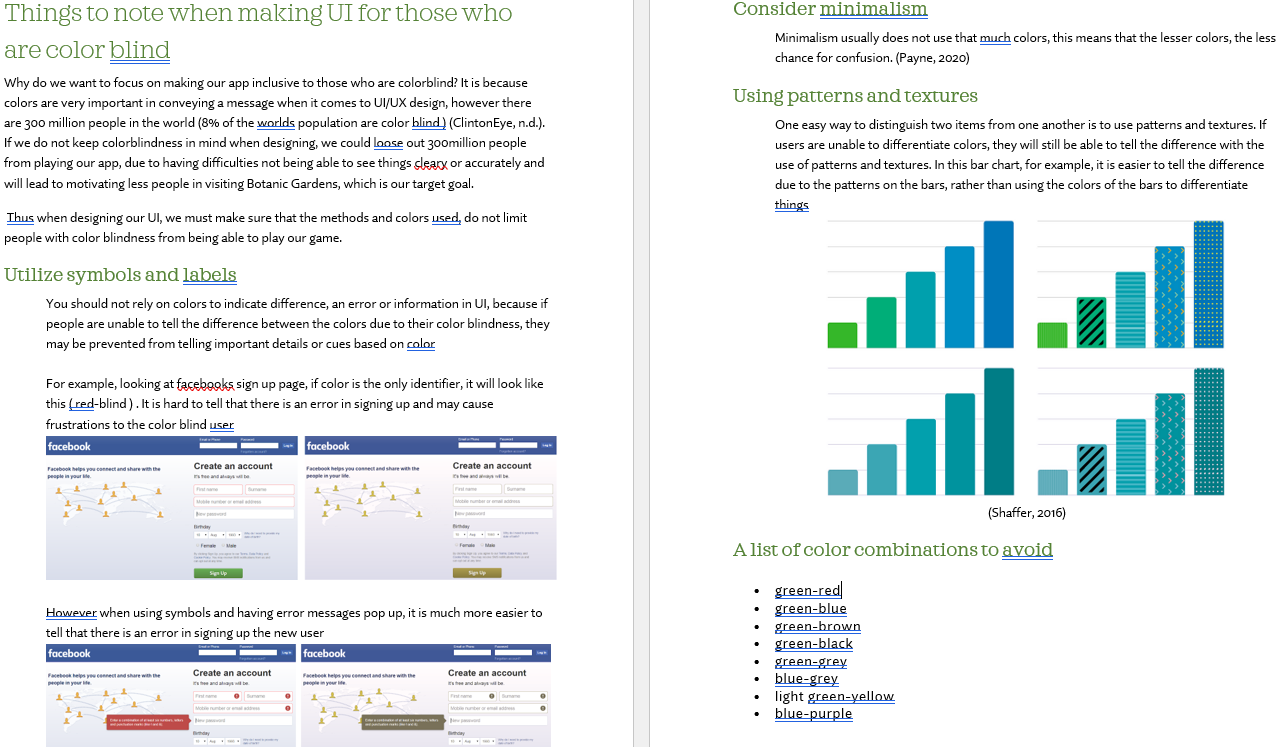

Things to note when making UI for those who are color blind

I did research on making UI for those who are colorblind, since because colors are very important in conveying a message when it comes to UI/UX design, however there are 300 million people in the world (8% of the worlds population are color blind ) (ClintonEye, n.d.). If we do not keep colorblindness in mind when designing, we could loose out 300million people from playing our app, due to having difficulties not being able to see things cleary or accurately and will lead to motivating less people in visiting Botanic Gardens, which is our target goal. Thus when I designed the UI, we must make sure that the methods and colors used, do not limit people with color blindness from being able to play our game.

Design Rationale

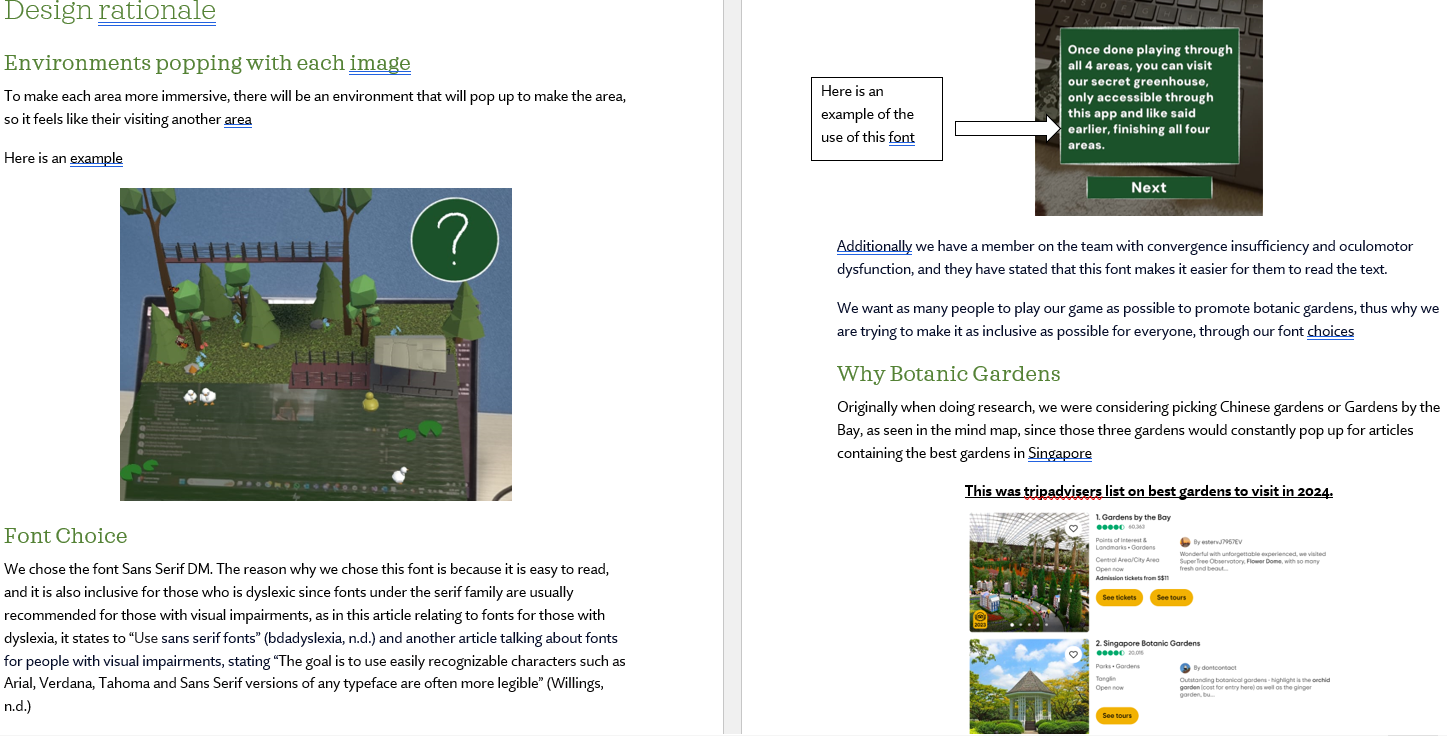

Here is where I explain my design rationale for the font chosen, which was to make it easier to read for those with Visual Imparements

Here is where I explain my design rationale for the prompters, since players may be confused easily since some may be unfamiliar with game apps or AR technology, it is here to help them so they dont feel too lost.

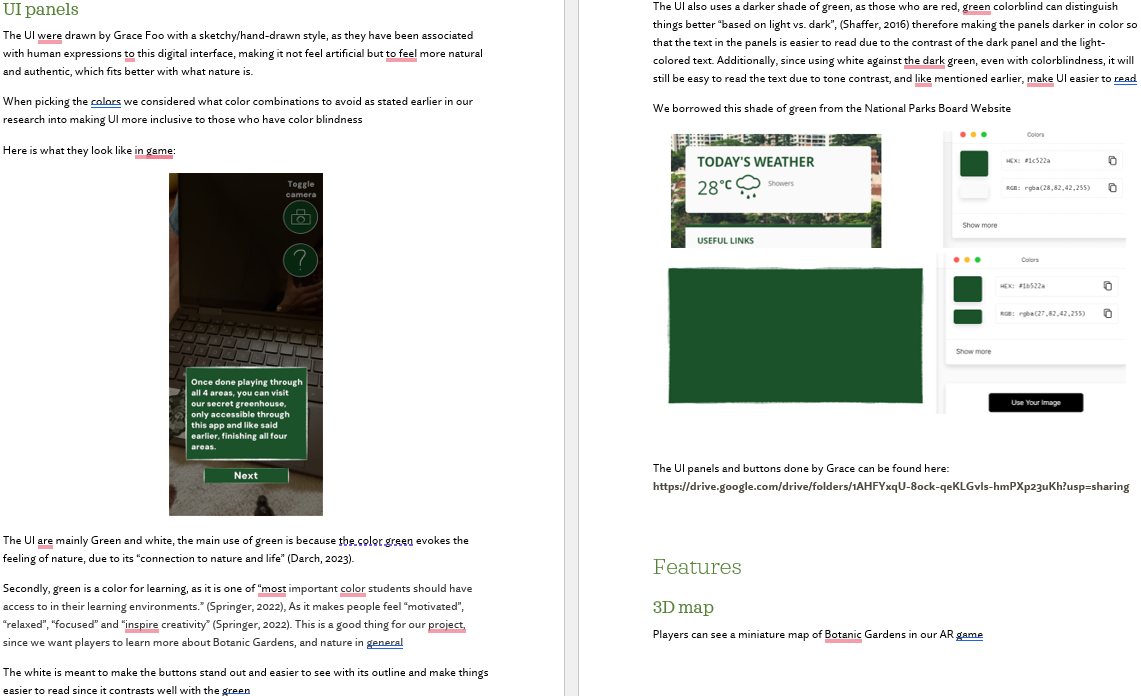

Here is where I explain my design rationale for the UI design used. Since colorblind people can see the difference in terms of darkness or lightness of a color they can use it to diffierciate things, thus I used dark green with a white border to see things easier

To read the screenshots in higher quality in and or more detailed design rationales, it can be read in the full proposal

Features

3D map

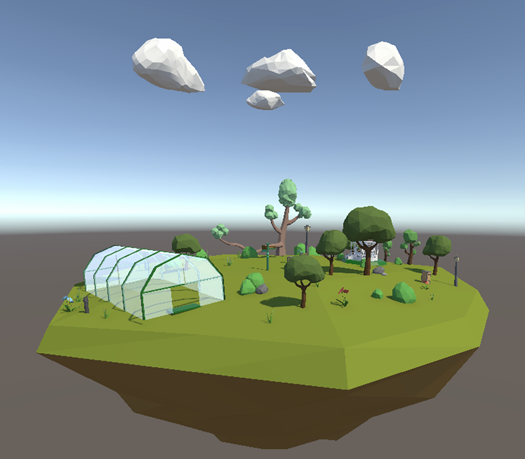

The map shows a miniature map of Botanic Gardens in our AR game. It can play music, animations and scale up and down

Fusion Game

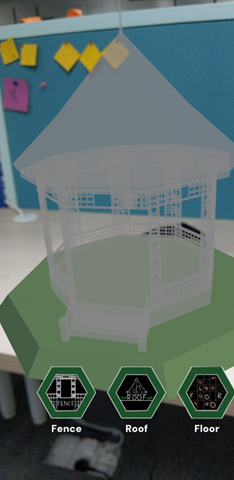

The fusion game is a bit like a puzzle, where players have to drag parts of the Botanic Garden's Bandstand, which is one of its most iconic land mark, and drag it in the middle to fuse it to complete building it. Players then can decorate it after finishing it.

Learning Forest

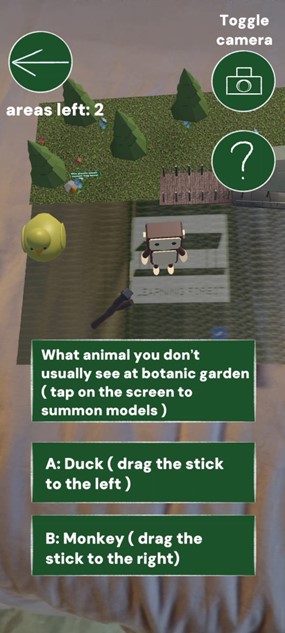

The learning forest is a quiz based game where players drag the learning stick to a model to pick the right option. If they get questions right, more models will pop up on the learning forest, where if you tap it, it plays animation.

Maze

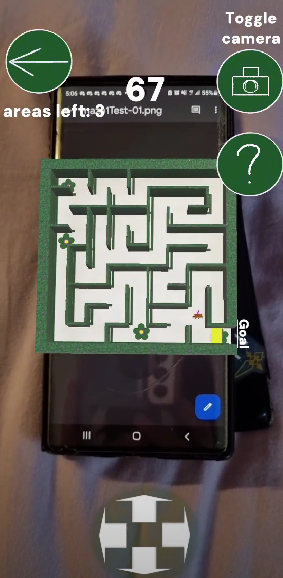

You have to guide the monkey out of the 3 mazes in the time constraint. Your final score will then be sent into the database and to be seen in the website's leaderboard.

Recycling and collecting

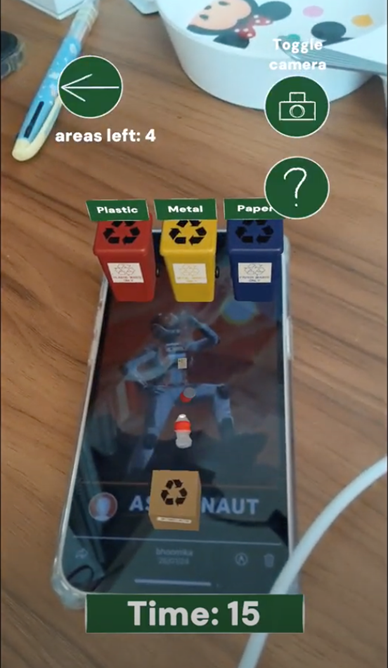

Players have to collect trash and learn to recycle them in the correct recycling bin.

Glasshouse Visit

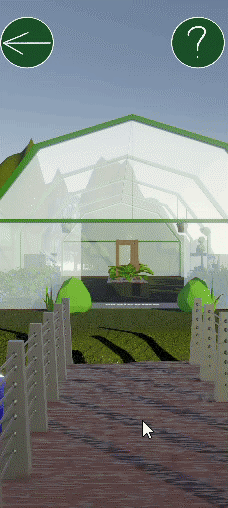

Once players finish all 4 main areas, they get access to the glassshouse where they can walk around this enviroment using their fingers to explore and appreciate this exclusive area

Picture competition

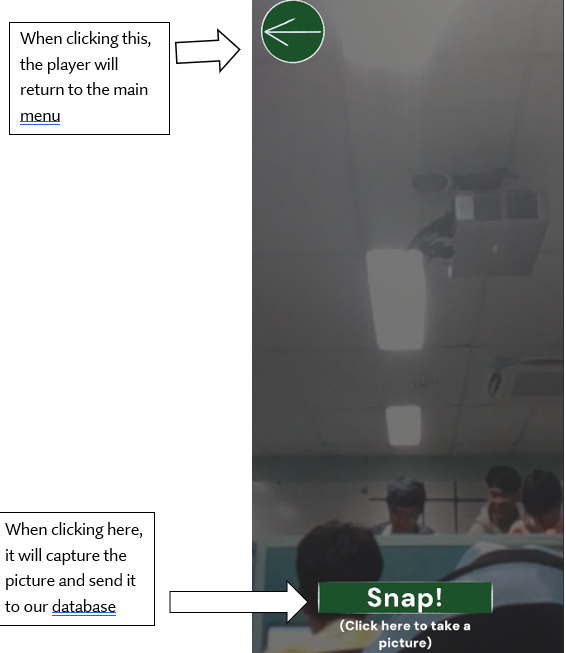

Players could take a selfie at Botanic Gardens and stand to win a chance to get a prize if they submit a picture, which will be sent into our firebase database.

Usability Test

I interviewed my persona for Usability testing

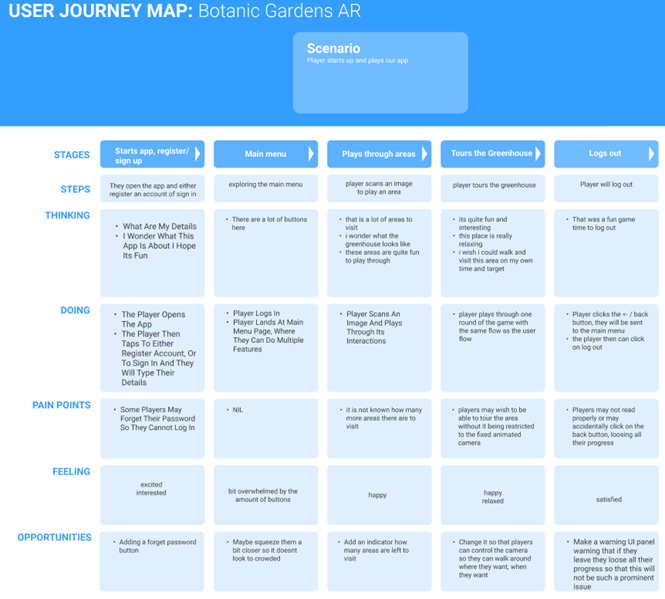

User Journey

Prototype

The figma prototype can be seen by clicking here.

Promotional Ideas

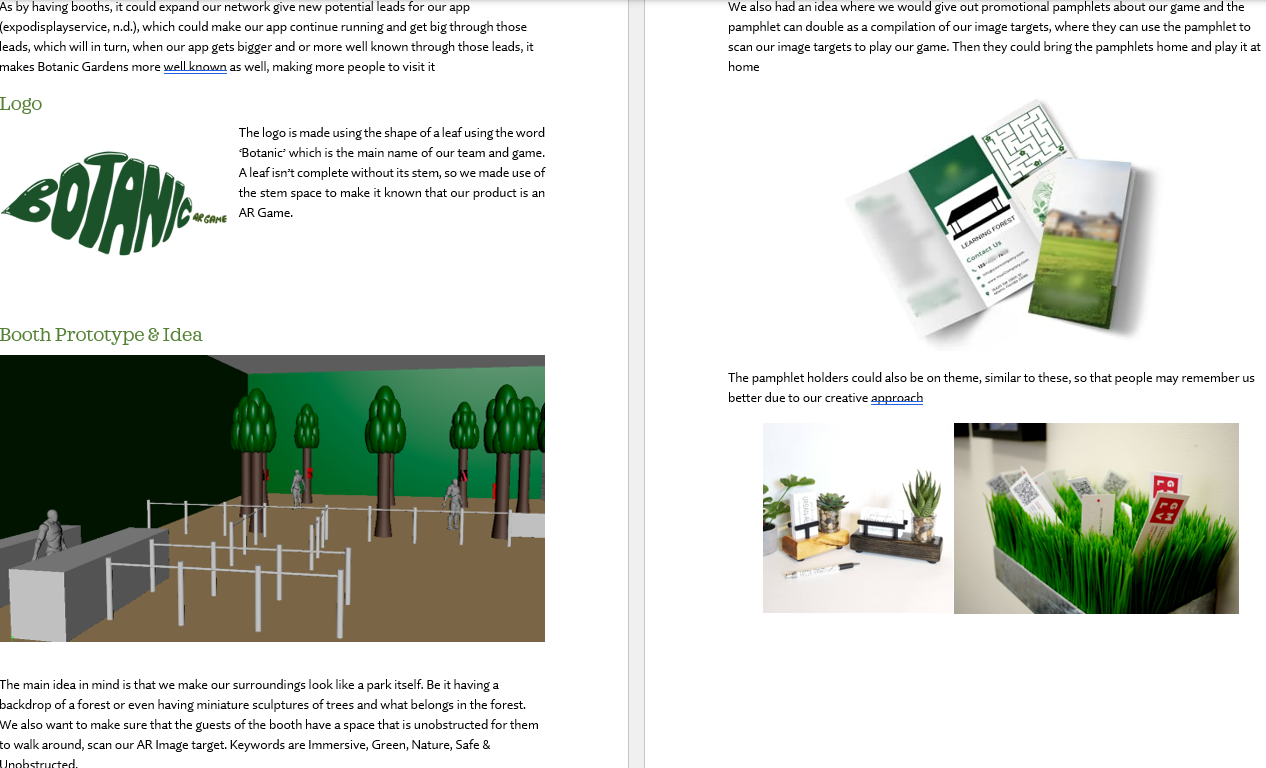

We thought a logo, a poster which is color blind friendly and some potential ideas if we had a big booth space and could do anything with it

First Physical Booth

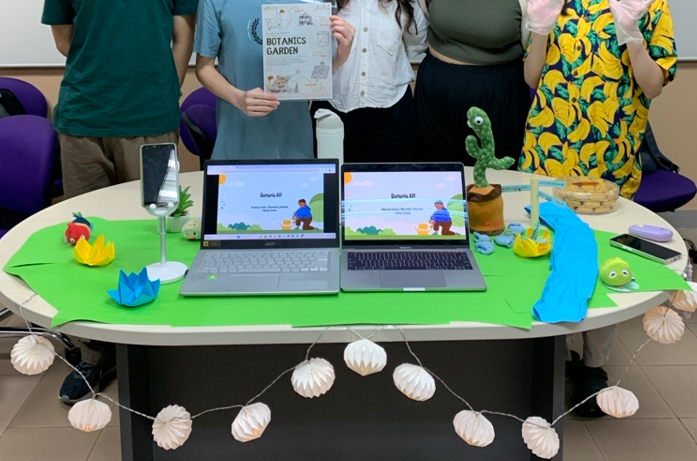

For our first road show, we decorated our booth to look like a little garden with animals, water, signs, plants, lily pads, etc and we gave out free candy and posters to every visitor
